MotifGrass grid, diamond voids pattern — free hatch (.pat), texture & 3D tiles
Grass grid, diamond voids is a stone layout built from 1 tile per repeat (sizes 600 × 400 mm), repeating on the lattice a = (600, 0) mm, b = (0, 400) mm, a cell of 240000 mm². The seamless texture repeat is 600 × 400 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.
Grass grid, diamond voids in numbers
| Category | Stone, paving and cobble |
|---|---|
| Tiles in one repeat | 1 |
| Lattice vector a | (600, 0) mm |
| Lattice vector b | (0, 400) mm |
| Repeat cell area | 240000 mm² |
| Tile sizes | 600 × 400 mm |
| Seamless texture repeat | 600 × 400 mm |
| Default length | 600 (range 300–900) |
| Default width | 400 (range 200–600) |
| Default void size (fraction of the web pitch) | 0.85 (range 0.3–0.9) |
Free downloads for Grass grid, diamond voids
- AutoCAD hatch (.pat)grass-grid-diamond.pat
- Revit model hatch (.pat)grass-grid-diamond-revit.pat
- SVG linesgrass-grid-diamond-hatch.svg
- DXF linesgrass-grid-diamond.dxf

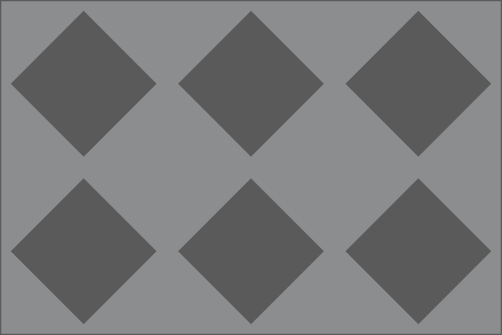

- Seamless albedo PNG502 × 335 px preview
Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.
Grass grid, diamond voids tile calculator
Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.
- Full tiles
- 42
- Cut tiles
- 14
- Whole tiles used
- 56
- Area (net)
- 7.67 m²
- Tile area bought
- 8.58 m²
- Waste from cuts
- 12 %
- Tiles to order
- 62
| Size | Full tiles | Cut tiles |
|---|---|---|
| 600 × 400 mm | 42 | 14 |
Open it in the editor or in SketchUp
Open Grass grid, diamond voids in the editor
Use it in SketchUp (10 free uses a day) motif.rbz
Questions about Grass grid, diamond voids
How many Grass grid, diamond voids tiles do I need for a 4 × 3 m room?
With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 42 full tiles and 14 cut tiles (56 whole tiles counting each cut tile as one). The net area is 7.67 m² and the tiles bought cover 8.58 m², so cutting alone wastes 12 %. Enter your own room and tile size in the calculator on this page.
Is the Grass grid, diamond voids hatch exact?
Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is grass-grid-diamond.
How do I use the .pat file in AutoCAD?
Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.
How do I use the .pat file in Revit?
In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.
What is the repeat size of Grass grid, diamond voids?
One repeat of the lattice covers 240000 mm² with 1 tile. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 600 × 400 mm at the default sizes.
