Grass paver, hexagon with round hole pattern — free hatch (.pat), texture & 3D tiles

Grass paver, hexagon with round hole is a stone layout built from 1 tile per repeat (sizes 700 × 606.2 mm), repeating on the lattice a = (525, 303.1) mm, b = (0, 606.2) mm, a cell of 318264 mm². The seamless texture repeat is 1050 × 606.2 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

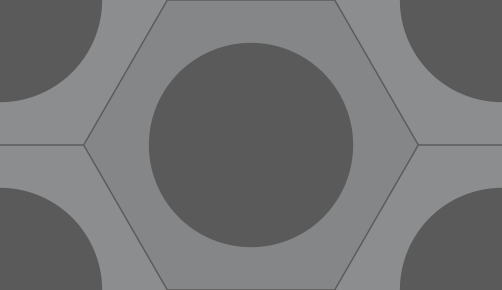

Grass paver, hexagon with round hole tile pattern: tiles drawn with their joints

Grass paver, hexagon with round hole in numbers

CategoryStone, paving and cobble
Tiles in one repeat1
Lattice vector a(525, 303.1) mm
Lattice vector b(0, 606.2) mm
Repeat cell area318264 mm²
Tile sizes700 × 606.2 mm
Seamless texture repeat1050 × 606.2 mm
Default side350 (range 100–600)
Default hole diameter (fraction of across flats)0.7 (range 0.3–0.9)

Free downloads for Grass paver, hexagon with round hole

The PAT files are approximate: this pattern has edges that a PAT line family cannot draw exactly, so they are drawn as stepped lines. SVG and DXF are exact.

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Grass paver, hexagon with round hole tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
24
Cut tiles
26
Whole tiles used
50
Area (net)
6.74 m²
Tile area bought
8.84 m²
Waste from cuts
31.2 %
Tiles to order
56
Tiles by size
SizeFull tilesCut tiles
700 × 606.2 mm2426

Open it in the editor or in SketchUp

Open Grass paver, hexagon with round hole in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Grass paver, hexagon with round hole

How many Grass paver, hexagon with round hole tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 24 full tiles and 26 cut tiles (50 whole tiles counting each cut tile as one). The net area is 6.74 m² and the tiles bought cover 8.84 m², so cutting alone wastes 31.2 %. Enter your own room and tile size in the calculator on this page.

Is the Grass paver, hexagon with round hole hatch exact?

Not entirely. A PAT file can only hold straight dashed line families, and Grass paver, hexagon with round hole has edges that no such family reproduces exactly. The file draws 144 edges as a staircase of horizontal and vertical steps of 30 mm, within a fraction of a step of the true edge. The SVG and DXF downloads are exact.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Grass paver, hexagon with round hole?

One repeat of the lattice covers 318264 mm² with 1 tile. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 1050 × 606.2 mm at the default sizes.
