Grass paver, 8 holes pattern — free hatch (.pat), texture & 3D tiles

Grass paver, 8 holes is a stone layout built from 1 tile per repeat (sizes 390 × 260 mm), repeating on the lattice a = (390, 0) mm, b = (0, 260) mm, a cell of 101400 mm². The seamless texture repeat is 390 × 260 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

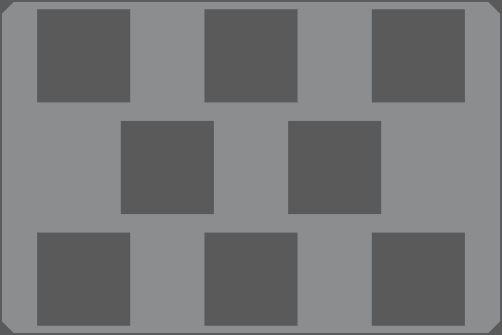

Grass paver, 8 holes tile pattern: tiles drawn with their joints

Grass paver, 8 holes in numbers

CategoryStone, paving and cobble
Tiles in one repeat1
Lattice vector a(390, 0) mm
Lattice vector b(0, 260) mm
Repeat cell area101400 mm²
Tile sizes390 × 260 mm
Seamless texture repeat390 × 260 mm
Default length390 (range 250–600)
Default width260 (range 180–400)
Default corner cut10 (range 0–10)
Default hole size (fraction of hole pitch)0.8 (range 0.3–0.8)

Free downloads for Grass paver, 8 holes

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Grass paver, 8 holes tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
110
Cut tiles
22
Whole tiles used
132
Area (net)
7.43 m²
Tile area bought
8.28 m²
Waste from cuts
11.5 %
Tiles to order
146
Tiles by size
SizeFull tilesCut tiles
390 × 260 mm11022

Open it in the editor or in SketchUp

Open Grass paver, 8 holes in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Grass paver, 8 holes

How many Grass paver, 8 holes tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 110 full tiles and 22 cut tiles (132 whole tiles counting each cut tile as one). The net area is 7.43 m² and the tiles bought cover 8.28 m², so cutting alone wastes 11.5 %. Enter your own room and tile size in the calculator on this page.

Is the Grass paver, 8 holes hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is grass-paver-8.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Grass paver, 8 holes?

One repeat of the lattice covers 101400 mm² with 1 tile. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 390 × 260 mm at the default sizes.
