MotifHoneycomb grid pattern — free hatch (.pat), texture & 3D tiles
Honeycomb grid is a stone layout built from 1 tile per repeat (sizes 70.4 × 61 mm), repeating on the lattice a = (61, 0) mm, b = (30.5, 52.8) mm, a cell of 3222 mm². The seamless texture repeat is 61 × 105.7 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.
Honeycomb grid in numbers
| Category | Stone, paving and cobble |
|---|---|
| Tiles in one repeat | 1 |
| Lattice vector a | (61, 0) mm |
| Lattice vector b | (30.5, 52.8) mm |
| Repeat cell area | 3222 mm² |
| Tile sizes | 70.4 × 61 mm |
| Seamless texture repeat | 61 × 105.7 mm |
| Default cell width (across flats) | 49 (range 10–200) |
| Default wall (shows only above the grout) | 12 (range 0.5–30) |
Free downloads for Honeycomb grid
- AutoCAD hatch (.pat)honeycomb-grid.pat
- Revit model hatch (.pat)honeycomb-grid-revit.pat
- SVG lineshoneycomb-grid-hatch.svg
- DXF lineshoneycomb-grid.dxf

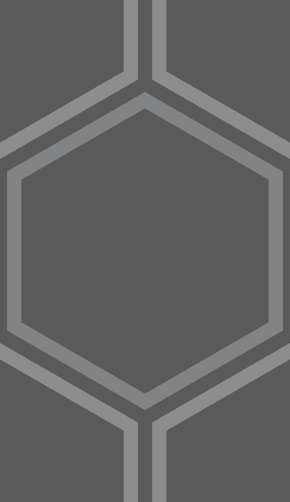

- Seamless albedo PNG290 × 502 px preview
Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.
Honeycomb grid tile calculator
Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.
- Full tiles
- 3640
- Cut tiles
- 217
- Whole tiles used
- 3857
- Area (net)
- 4.27 m²
- Tile area bought
- 4.41 m²
- Waste from cuts
- 3.4 %
- Tiles to order
- 4243
| Size | Full tiles | Cut tiles |
|---|---|---|
| 70.4 × 61 mm | 3640 | 217 |
Open it in the editor or in SketchUp
Open Honeycomb grid in the editor
Use it in SketchUp (10 free uses a day) motif.rbz
Questions about Honeycomb grid
How many Honeycomb grid tiles do I need for a 4 × 3 m room?
With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 3640 full tiles and 217 cut tiles (3857 whole tiles counting each cut tile as one). The net area is 4.27 m² and the tiles bought cover 4.41 m², so cutting alone wastes 3.4 %. Enter your own room and tile size in the calculator on this page.
Is the Honeycomb grid hatch exact?
Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is honeycomb-grid.
How do I use the .pat file in AutoCAD?
Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.
How do I use the .pat file in Revit?
In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.
What is the repeat size of Honeycomb grid?
One repeat of the lattice covers 3222 mm² with 1 tile. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 61 × 105.7 mm at the default sizes.
