Hopscotch pattern — free hatch (.pat), texture & 3D tiles

Hopscotch is a stone layout built from 2 tiles per repeat (sizes 300 × 300, 150 × 150 mm), repeating on the lattice a = (300, 150) mm, b = (-150, 300) mm, a cell of 112500 mm². The seamless texture repeat is 750 × 750 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

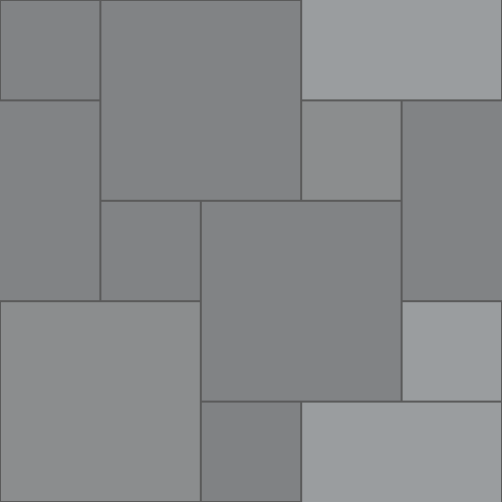

Hopscotch tile pattern: tiles drawn with their joints

Hopscotch in numbers

CategoryStone, paving and cobble
Tiles in one repeat2
Lattice vector a(300, 150) mm
Lattice vector b(-150, 300) mm
Repeat cell area112500 mm²
Tile sizes300 × 300, 150 × 150 mm
Seamless texture repeat750 × 750 mm
Default large square300 (range 20–2000)
Default small / large side0.5 (range 0.1–1)

Free downloads for Hopscotch

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Hopscotch tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
199
Cut tiles
26
Whole tiles used
225
Area (net)
12 m²
Tile area bought
12.96 m²
Waste from cuts
8 %
Tiles to order
248
Tiles by size
SizeFull tilesCut tiles
300 × 300 mm9522
150 × 150 mm1044

Open it in the editor or in SketchUp

Open Hopscotch in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Hopscotch

How many Hopscotch tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 199 full tiles and 26 cut tiles (225 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 12.96 m², so cutting alone wastes 8 %. Enter your own room and tile size in the calculator on this page.

Is the Hopscotch hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is hopscotch.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Hopscotch?

One repeat of the lattice covers 112500 mm² with 2 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 750 × 750 mm at the default sizes.
