Muster K pattern — free hatch (.pat), texture & 3D tiles

Muster K is a stone layout built from 6 tiles per repeat (sizes 152.4 × 152.4, 228.6 × 152.4 mm), repeating on the lattice a = (304.8, 304.8) mm, b = (-304.8, 304.8) mm, a cell of 185806 mm². The seamless texture repeat is 609.6 × 609.6 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

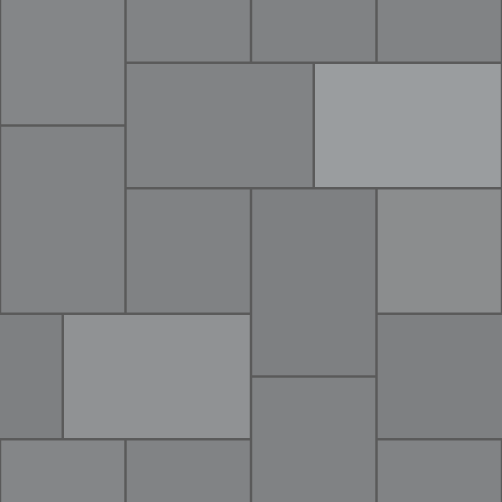

Muster K tile pattern: tiles drawn with their joints

Muster K in numbers

CategoryStone, paving and cobble
Tiles in one repeat6
Lattice vector a(304.8, 304.8) mm
Lattice vector b(-304.8, 304.8) mm
Repeat cell area185806 mm²
Tile sizes152.4 × 152.4, 228.6 × 152.4 mm
Seamless texture repeat609.6 × 609.6 mm
Default square side / 276.2 (range 20–500)

Free downloads for Muster K

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Muster K tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
359
Cut tiles
73
Whole tiles used
432
Area (net)
12 m²
Tile area bought
13.39 m²
Waste from cuts
11.6 %
Tiles to order
476
Tiles by size
SizeFull tilesCut tiles
152.4 × 152.4 mm11726
228.6 × 152.4 mm24247

Open it in the editor or in SketchUp

Open Muster K in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Muster K

How many Muster K tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 359 full tiles and 73 cut tiles (432 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 13.39 m², so cutting alone wastes 11.6 %. Enter your own room and tile size in the calculator on this page.

Is the Muster K hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is muster-k.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Muster K?

One repeat of the lattice covers 185806 mm² with 6 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 609.6 × 609.6 mm at the default sizes.
