Opus Romano (three sizes) pattern — free hatch (.pat), texture & 3D tiles

Opus Romano (three sizes) is a stone layout built from 3 tiles per repeat (sizes 600 × 600, 600 × 400, 400 × 400 mm), repeating on the lattice a = (1000, -400) mm, b = (400, 600) mm, a cell of 760000 mm². The seamless texture repeat is 3800 × 3800 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

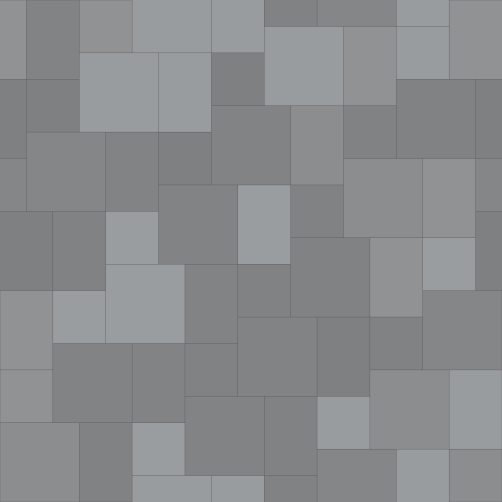

Opus Romano (three sizes) tile pattern: tiles drawn with their joints

Opus Romano (three sizes) in numbers

CategoryStone, paving and cobble
Tiles in one repeat3
Lattice vector a(1000, -400) mm
Lattice vector b(400, 600) mm
Repeat cell area760000 mm²
Tile sizes600 × 600, 600 × 400, 400 × 400 mm
Seamless texture repeat3800 × 3800 mm
Default smallest tile side200 (range 20–1000)

Free downloads for Opus Romano (three sizes)

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Opus Romano (three sizes) tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
39
Cut tiles
17
Whole tiles used
56
Area (net)
12 m²
Tile area bought
14.28 m²
Waste from cuts
19 %
Tiles to order
62
Tiles by size
SizeFull tilesCut tiles
600 × 600 mm127
600 × 400 mm136
400 × 400 mm144

Open it in the editor or in SketchUp

Open Opus Romano (three sizes) in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Opus Romano (three sizes)

How many Opus Romano (three sizes) tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 39 full tiles and 17 cut tiles (56 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 14.28 m², so cutting alone wastes 19 %. Enter your own room and tile size in the calculator on this page.

Is the Opus Romano (three sizes) hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is opus-romano-three-size.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Opus Romano (three sizes)?

One repeat of the lattice covers 760000 mm² with 3 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 3800 × 3800 mm at the default sizes.
