Random plank pattern — free hatch (.pat), texture & 3D tiles

Random plank is a wood layout built from 32 tiles per repeat (sizes 1200 × 190, 1500 × 190, 600 × 190 mm (+2)), repeating on the lattice a = (4800, 0) mm, b = (0, 1520) mm, a cell of 7296000 mm². The seamless texture repeat is 4800 × 1520 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

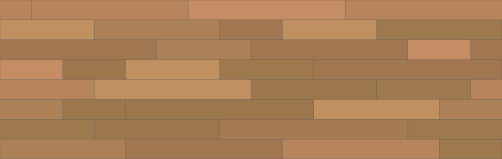

Random plank tile pattern: tiles drawn with their joints

Random plank in numbers

CategoryWood floors and parquetry
Tiles in one repeat32
Lattice vector a(4800, 0) mm
Lattice vector b(0, 1520) mm
Repeat cell area7296000 mm²
Tile sizes1200 × 190, 1500 × 190, 600 × 190, 1800 × 190, 900 × 190 mm
Seamless texture repeat4800 × 1520 mm
Default plank width190 (range 20–400)
Default shortest plank600 (range 100–3000)
Default longest plank1800 (range 100–6000)
Default length step300 (range 10–1000)
Default rows before the pattern repeats8 (range 2–40)
Default length before the pattern repeats4800 (range 600–20000)
Default minimum joint stagger300 (range 0–1000)
Default seed1 (range 0–1000000)

Free downloads for Random plank

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Random plank tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
38
Cut tiles
28
Whole tiles used
66
Area (net)
12 m²
Tile area bought
15.73 m²
Waste from cuts
31.1 %
Tiles to order
73
Tiles by size
SizeFull tilesCut tiles
1200 × 190 mm88
1500 × 190 mm84
600 × 190 mm82
1800 × 190 mm412
900 × 190 mm102

Open it in the editor or in SketchUp

Open Random plank in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Random plank

How many Random plank tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 38 full tiles and 28 cut tiles (66 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 15.73 m², so cutting alone wastes 31.1 %. Enter your own room and tile size in the calculator on this page.

Is the Random plank hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is random-plank.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Random plank?

One repeat of the lattice covers 7296000 mm² with 32 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 4800 × 1520 mm at the default sizes.
