Mixed width plank (3 widths) pattern — free hatch (.pat), texture & 3D tiles

Mixed width plank (3 widths) is a wood layout built from 3 tiles per repeat (sizes 1800 × 76.2, 1800 × 127, 1800 × 177.8 mm), repeating on the lattice a = (1800, 0) mm, b = (0, 381) mm, a cell of 685800 mm². The seamless texture repeat is 1800 × 381 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

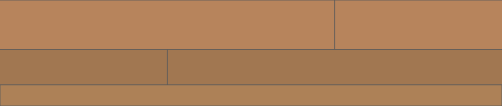

Mixed width plank (3 widths) tile pattern: tiles drawn with their joints

Mixed width plank (3 widths) in numbers

CategoryWood floors and parquetry
Tiles in one repeat3
Lattice vector a(1800, 0) mm
Lattice vector b(0, 381) mm
Repeat cell area685800 mm²
Tile sizes1800 × 76.2, 1800 × 127, 1800 × 177.8 mm
Seamless texture repeat1800 × 381 mm
Default plank length1800 (range 600–3000)
Default narrow plank76.2 (range 20–400)
Default medium plank127 (range 20–400)
Default wide plank177.8 (range 20–400)

Free downloads for Mixed width plank (3 widths)

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Mixed width plank (3 widths) tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
31
Cut tiles
41
Whole tiles used
72
Area (net)
12 m²
Tile area bought
16.46 m²
Waste from cuts
37.2 %
Tiles to order
80
Tiles by size
SizeFull tilesCut tiles
1800 × 76.2 mm168
1800 × 127 mm816
1800 × 177.8 mm717

Open it in the editor or in SketchUp

Open Mixed width plank (3 widths) in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Mixed width plank (3 widths)

How many Mixed width plank (3 widths) tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 31 full tiles and 41 cut tiles (72 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 16.46 m², so cutting alone wastes 37.2 %. Enter your own room and tile size in the calculator on this page.

Is the Mixed width plank (3 widths) hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is mixed-width-plank.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Mixed width plank (3 widths)?

One repeat of the lattice covers 685800 mm² with 3 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 1800 × 381 mm at the default sizes.
