Motif

Chevron (three plank widths) pattern — free hatch (.pat), texture & 3D tiles

Chevron (three plank widths) is a wood layout built from 6 tiles per repeat (sizes 482.6 × 25.4, 508 × 50.8, 571.5 × 114.3 mm), repeating on the lattice a = (646.6, 0) mm, b = (0, 269.4) mm, a cell of 174193 mm². The seamless texture repeat is 646.6 × 269.4 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

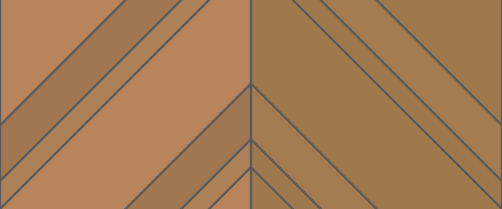

Chevron (three plank widths) tile pattern: tiles drawn with their joints

Chevron (three plank widths) in numbers

CategoryWood floors and parquetry
Tiles in one repeat6
Lattice vector a(646.6, 0) mm
Lattice vector b(0, 269.4) mm
Repeat cell area174193 mm²
Tile sizes482.6 × 25.4, 508 × 50.8, 571.5 × 114.3 mm
Seamless texture repeat646.6 × 269.4 mm
Default plank length457.2 (range 50–3000)
Default widest plank114.3 (range 10–500)
Default middle plank50.8 (range 10–500)
Default narrowest plank25.4 (range 10–500)
Default end cut angle (degrees)45 (range 10–90)

Free downloads for Chevron (three plank widths)

The PAT files are approximate: this pattern has edges that a PAT line family cannot draw exactly, so they are drawn as stepped lines. SVG and DXF are exact.

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Chevron (three plank widths) tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
348
Cut tiles
143
Whole tiles used
491
Area (net)
12 m²
Tile area bought
14.33 m²
Waste from cuts
19.4 %
Tiles to order
541
Tiles by size
SizeFull tilesCut tiles
482.6 × 25.4 mm12048
508 × 50.8 mm12035
571.5 × 114.3 mm10860

Open it in the editor or in SketchUp

Open Chevron (three plank widths) in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Chevron (three plank widths)

How many Chevron (three plank widths) tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 348 full tiles and 143 cut tiles (491 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 14.33 m², so cutting alone wastes 19.4 %. Enter your own room and tile size in the calculator on this page.

Is the Chevron (three plank widths) hatch exact?

Not entirely. A PAT file can only hold straight dashed line families, and Chevron (three plank widths) has edges that no such family reproduces exactly. The file draws 12 edges as a staircase of horizontal and vertical steps of 13 mm, within a fraction of a step of the true edge. The SVG and DXF downloads are exact.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Chevron (three plank widths)?

One repeat of the lattice covers 174193 mm² with 6 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 646.6 × 269.4 mm at the default sizes.
