Random plank (ship deck) pattern — free hatch (.pat), texture & 3D tiles

Random plank (ship deck) is a wood layout built from 48 tiles per repeat (sizes 450 × 70, 500 × 70, 400 × 70 mm), repeating on the lattice a = (2700, 0) mm, b = (0, 560) mm, a cell of 1512000 mm². The seamless texture repeat is 2700 × 560 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

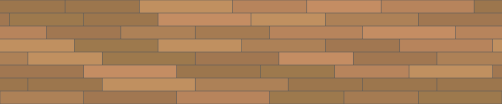

Random plank (ship deck) tile pattern: tiles drawn with their joints

Random plank (ship deck) in numbers

CategoryWood floors and parquetry
Tiles in one repeat48
Lattice vector a(2700, 0) mm
Lattice vector b(0, 560) mm
Repeat cell area1512000 mm²
Tile sizes450 × 70, 500 × 70, 400 × 70 mm
Seamless texture repeat2700 × 560 mm
Default plank width70 (range 20–400)
Default shortest plank400 (range 100–3000)
Default longest plank500 (range 100–6000)
Default length step50 (range 10–1000)
Default rows before the pattern repeats8 (range 2–40)
Default length before the pattern repeats2700 (range 600–20000)
Default minimum joint stagger100 (range 0–1000)
Default seed1 (range 0–1000000)

Free downloads for Random plank (ship deck)

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Random plank (ship deck) tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
331
Cut tiles
82
Whole tiles used
413
Area (net)
12 m²
Tile area bought
13.12 m²
Waste from cuts
9.3 %
Tiles to order
455
Tiles by size
SizeFull tilesCut tiles
450 × 70 mm6818
500 × 70 mm12752
400 × 70 mm13612

Open it in the editor or in SketchUp

Open Random plank (ship deck) in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Random plank (ship deck)

How many Random plank (ship deck) tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 331 full tiles and 82 cut tiles (413 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 13.12 m², so cutting alone wastes 9.3 %. Enter your own room and tile size in the calculator on this page.

Is the Random plank (ship deck) hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is random-plank-ship-deck.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Random plank (ship deck)?

One repeat of the lattice covers 1512000 mm² with 48 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 2700 × 560 mm at the default sizes.
