Random plank (wide) pattern — free hatch (.pat), texture & 3D tiles

Random plank (wide) is a wood layout built from 24 tiles per repeat (sizes 2100 × 250, 2400 × 250, 1200 × 250 mm (+2)), repeating on the lattice a = (7200, 0) mm, b = (0, 1500) mm, a cell of 10800000 mm². The seamless texture repeat is 7200 × 1500 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

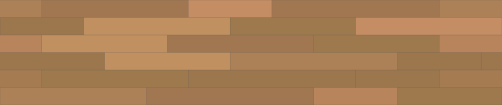

Random plank (wide) tile pattern: tiles drawn with their joints

Random plank (wide) in numbers

CategoryWood floors and parquetry
Tiles in one repeat24
Lattice vector a(7200, 0) mm
Lattice vector b(0, 1500) mm
Repeat cell area10800000 mm²
Tile sizes2100 × 250, 2400 × 250, 1200 × 250, 1500 × 250, 1800 × 250 mm
Seamless texture repeat7200 × 1500 mm
Default plank width250 (range 20–400)
Default shortest plank1200 (range 100–3000)
Default longest plank2400 (range 100–6000)
Default length step300 (range 10–1000)
Default rows before the pattern repeats6 (range 2–40)
Default length before the pattern repeats7200 (range 600–20000)
Default minimum joint stagger400 (range 0–1000)
Default seed1 (range 0–1000000)

Free downloads for Random plank (wide)

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Random plank (wide) tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
16
Cut tiles
20
Whole tiles used
36
Area (net)
12 m²
Tile area bought
17.1 m²
Waste from cuts
42.5 %
Tiles to order
40
Tiles by size
SizeFull tilesCut tiles
2100 × 250 mm82
2400 × 250 mm08
1200 × 250 mm40
1500 × 250 mm06
1800 × 250 mm44

Open it in the editor or in SketchUp

Open Random plank (wide) in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Random plank (wide)

How many Random plank (wide) tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 16 full tiles and 20 cut tiles (36 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 17.1 m², so cutting alone wastes 42.5 %. Enter your own room and tile size in the calculator on this page.

Is the Random plank (wide) hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is random-plank-wide.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Random plank (wide)?

One repeat of the lattice covers 10800000 mm² with 24 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 7200 × 1500 mm at the default sizes.
