Triple herringbone pattern — free hatch (.pat), texture & 3D tiles

Triple herringbone is a wood layout built from 6 tiles per repeat (sizes 900 × 150 mm), repeating on the lattice a = (450, 450) mm, b = (-900, 900) mm, a cell of 810000 mm². The seamless texture repeat is 1800 × 1800 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

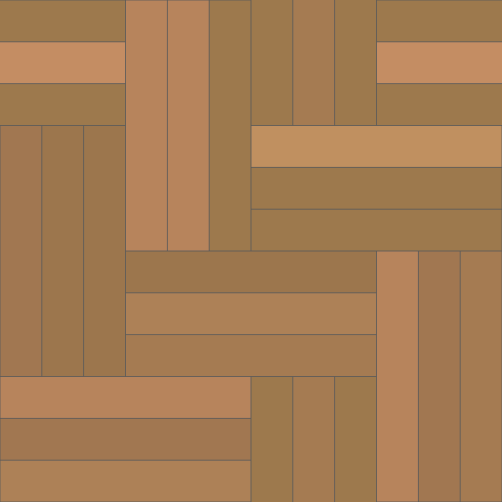

Triple herringbone tile pattern: tiles drawn with their joints

Triple herringbone in numbers

CategoryWood floors and parquetry
Tiles in one repeat6
Lattice vector a(450, 450) mm
Lattice vector b(-900, 900) mm
Repeat cell area810000 mm²
Tile sizes900 × 150 mm
Seamless texture repeat1800 × 1800 mm
Default length900 (range 100–3000)
Default plank width150 (range 20–500)

Free downloads for Triple herringbone

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Triple herringbone tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
69
Cut tiles
34
Whole tiles used
103
Area (net)
12 m²
Tile area bought
13.9 m²
Waste from cuts
15.9 %
Tiles to order
114
Tiles by size
SizeFull tilesCut tiles
900 × 150 mm6934

Open it in the editor or in SketchUp

Open Triple herringbone in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Triple herringbone

How many Triple herringbone tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 69 full tiles and 34 cut tiles (103 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 13.9 m², so cutting alone wastes 15.9 %. Enter your own room and tile size in the calculator on this page.

Is the Triple herringbone hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is triple-herringbone.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Triple herringbone?

One repeat of the lattice covers 810000 mm² with 6 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 1800 × 1800 mm at the default sizes.
