Triple basketweave pattern — free hatch (.pat), texture & 3D tiles

Triple basketweave is a wood layout built from 6 tiles per repeat (sizes 300 × 100 mm), repeating on the lattice a = (600, 0) mm, b = (300, 300) mm, a cell of 180000 mm². The seamless texture repeat is 600 × 600 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

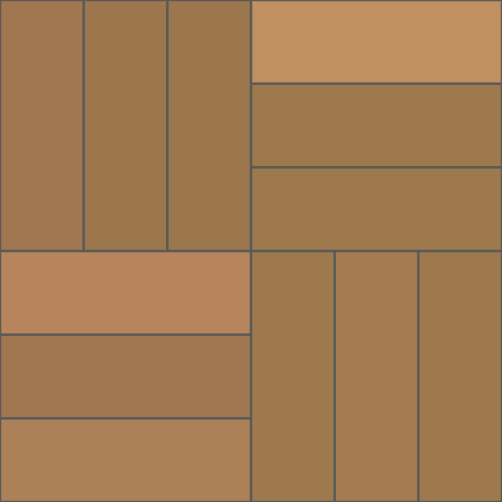

Triple basketweave tile pattern: tiles drawn with their joints

Triple basketweave in numbers

CategoryWood floors and parquetry
Tiles in one repeat6
Lattice vector a(600, 0) mm
Lattice vector b(300, 300) mm
Repeat cell area180000 mm²
Tile sizes300 × 100 mm
Seamless texture repeat600 × 600 mm
Default block side300 (range 60–3000)

Free downloads for Triple basketweave

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Triple basketweave tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
395
Cut tiles
15
Whole tiles used
410
Area (net)
12 m²
Tile area bought
12.3 m²
Waste from cuts
2.5 %
Tiles to order
452
Tiles by size
SizeFull tilesCut tiles
300 × 100 mm39515

Open it in the editor or in SketchUp

Open Triple basketweave in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Triple basketweave

How many Triple basketweave tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 395 full tiles and 15 cut tiles (410 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 12.3 m², so cutting alone wastes 2.5 %. Enter your own room and tile size in the calculator on this page.

Is the Triple basketweave hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is triple-basketweave.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Triple basketweave?

One repeat of the lattice covers 180000 mm² with 6 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 600 × 600 mm at the default sizes.
