MotifTactile lozenge pattern — free hatch (.pat), texture & 3D tiles
Tactile lozenge is a stone layout built from 3 tiles per repeat (sizes 150 × 83, 133.3 × 100 mm), repeating on the lattice a = (200, 0) mm, b = (0, 133.3) mm, a cell of 26660 mm². The seamless texture repeat is 200 × 133.3 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.
Tactile lozenge in numbers
| Category | Stone, paving and cobble |
|---|---|
| Tiles in one repeat | 3 |
| Lattice vector a | (200, 0) mm |
| Lattice vector b | (0, 133.3) mm |
| Repeat cell area | 26660 mm² |
| Tile sizes | 150 × 83, 133.3 × 100 mm |
| Seamless texture repeat | 200 × 133.3 mm |
| Default lozenge length | 150 (range 110–180) |
| Default lozenge width | 83 (range 50–100) |
| Default pitch along the lozenge | 200 (range 190–300) |
| Default pitch across the lozenge | 133.3 (range 110–200) |
Free downloads for Tactile lozenge
- AutoCAD hatch (.pat)approximate: 128 edges as 6.7 mm steps
- Revit model hatch (.pat)approximate: 128 edges as 6.7 mm steps
- SVG linestactile-lozenge-hatch.svg
- DXF linestactile-lozenge.dxf

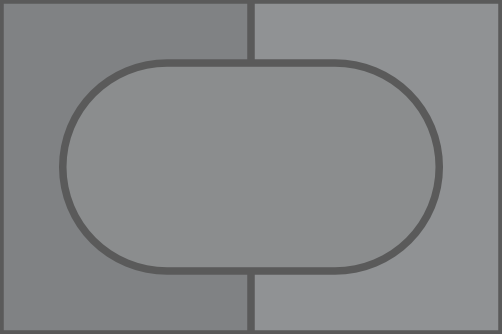

- Seamless albedo PNG502 × 334 px preview
The PAT files are approximate: this pattern has edges that a PAT line family cannot draw exactly, so they are drawn as stepped lines. SVG and DXF are exact.
Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.
Tactile lozenge tile calculator
Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.
- Full tiles
- 1320
- Cut tiles
- 60
- Whole tiles used
- 1380
- Area (net)
- 12 m²
- Tile area bought
- 12.26 m²
- Waste from cuts
- 2.2 %
- Tiles to order
- 1519
| Size | Full tiles | Cut tiles |
|---|---|---|
| 150 × 83 mm | 440 | 20 |
| 133.3 × 100 mm | 880 | 40 |
Open it in the editor or in SketchUp
Open Tactile lozenge in the editor
Use it in SketchUp (10 free uses a day) motif.rbz
Questions about Tactile lozenge
How many Tactile lozenge tiles do I need for a 4 × 3 m room?
With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 1320 full tiles and 60 cut tiles (1380 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 12.26 m², so cutting alone wastes 2.2 %. Enter your own room and tile size in the calculator on this page.
Is the Tactile lozenge hatch exact?
Not entirely. A PAT file can only hold straight dashed line families, and Tactile lozenge has edges that no such family reproduces exactly. The file draws 128 edges as a staircase of horizontal and vertical steps of 6.7 mm, within a fraction of a step of the true edge. The SVG and DXF downloads are exact.
How do I use the .pat file in AutoCAD?
Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.
How do I use the .pat file in Revit?
In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.
What is the repeat size of Tactile lozenge?
One repeat of the lattice covers 26660 mm² with 3 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 200 × 133.3 mm at the default sizes.
