Chantilly weave pattern — free hatch (.pat), texture & 3D tiles

Chantilly weave is a wood layout built from 30 tiles per repeat (sizes 304.8 × 50.8, 152.4 × 50.8 mm), repeating on the lattice a = (457.2, 457.2) mm, b = (457.2, -457.2) mm, a cell of 418064 mm². The seamless texture repeat is 914.4 × 914.4 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

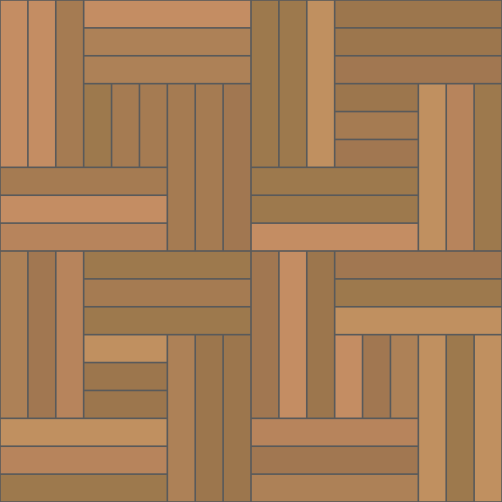

Chantilly weave tile pattern: tiles drawn with their joints

Chantilly weave in numbers

CategoryWood floors and parquetry
Tiles in one repeat30
Lattice vector a(457.2, 457.2) mm
Lattice vector b(457.2, -457.2) mm
Repeat cell area418064 mm²
Tile sizes304.8 × 50.8, 152.4 × 50.8 mm
Seamless texture repeat914.4 × 914.4 mm
Default plank width (length = 6 x width)50.8 (range 10–300)

Free downloads for Chantilly weave

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Chantilly weave tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
811
Cut tiles
88
Whole tiles used
899
Area (net)
12 m²
Tile area bought
12.5 m²
Waste from cuts
4.1 %
Tiles to order
989
Tiles by size
SizeFull tilesCut tiles
304.8 × 50.8 mm63976
152.4 × 50.8 mm17212

Open it in the editor or in SketchUp

Open Chantilly weave in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Chantilly weave

How many Chantilly weave tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 811 full tiles and 88 cut tiles (899 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 12.5 m², so cutting alone wastes 4.1 %. Enter your own room and tile size in the calculator on this page.

Is the Chantilly weave hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is chantilly-weave.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Chantilly weave?

One repeat of the lattice covers 418064 mm² with 30 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 914.4 × 914.4 mm at the default sizes.
