Trapezoid pattern — free hatch (.pat), texture & 3D tiles

Trapezoid is a ceramic layout built from 2 tiles per repeat (sizes 200 × 150 mm), repeating on the lattice a = (300, 0) mm, b = (150, 150) mm, a cell of 45000 mm². The seamless texture repeat is 300 × 300 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

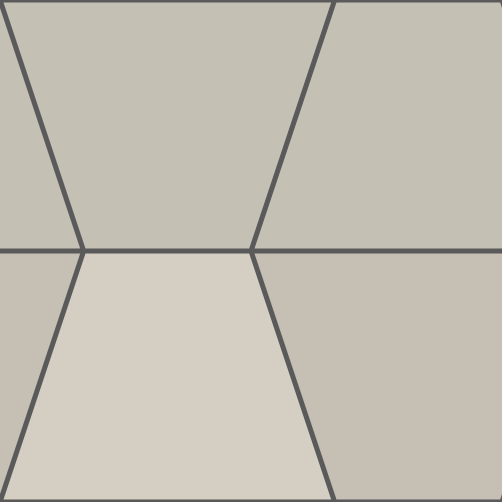

Trapezoid tile pattern: tiles drawn with their joints

Trapezoid in numbers

CategoryCeramic, mosaic and geometric tiles
Tiles in one repeat2
Lattice vector a(300, 0) mm
Lattice vector b(150, 150) mm
Repeat cell area45000 mm²
Tile sizes200 × 150 mm
Seamless texture repeat300 × 300 mm
Default long base200 (range 40–800)
Default short base / long base0.5 (range 0.2–0.9)
Default height150 (range 20–600)

Free downloads for Trapezoid

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Trapezoid tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
520
Cut tiles
40
Whole tiles used
560
Area (net)
12 m²
Tile area bought
12.6 m²
Waste from cuts
5 %
Tiles to order
616
Tiles by size
SizeFull tilesCut tiles
200 × 150 mm52040

Open it in the editor or in SketchUp

Open Trapezoid in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Trapezoid

How many Trapezoid tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 520 full tiles and 40 cut tiles (560 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 12.6 m², so cutting alone wastes 5 %. Enter your own room and tile size in the calculator on this page.

Is the Trapezoid hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is trapezoid.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Trapezoid?

One repeat of the lattice covers 45000 mm² with 2 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 300 × 300 mm at the default sizes.
