Triangle pattern — free hatch (.pat), texture & 3D tiles

Triangle is a ceramic layout built from 2 tiles per repeat (sizes 200 × 175 mm), repeating on the lattice a = (200, 0) mm, b = (100, 175) mm, a cell of 35000 mm². The seamless texture repeat is 200 × 350 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

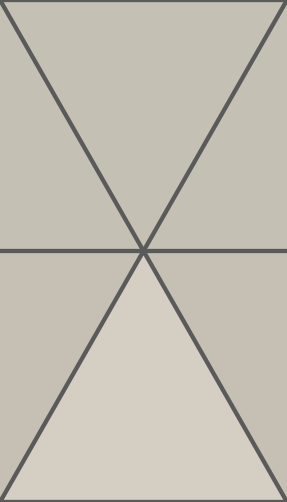

Triangle tile pattern: tiles drawn with their joints

Triangle in numbers

CategoryCeramic, mosaic and geometric tiles
Tiles in one repeat2
Lattice vector a(200, 0) mm
Lattice vector b(100, 175) mm
Repeat cell area35000 mm²
Tile sizes200 × 175 mm
Seamless texture repeat200 × 350 mm
Default base200 (range 20–1000)
Default height175 (range 20–1000)

Free downloads for Triangle

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Triangle tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
663
Cut tiles
75
Whole tiles used
738
Area (net)
12 m²
Tile area bought
12.91 m²
Waste from cuts
7.6 %
Tiles to order
812
Tiles by size
SizeFull tilesCut tiles
200 × 175 mm66375

Open it in the editor or in SketchUp

Open Triangle in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Triangle

How many Triangle tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 663 full tiles and 75 cut tiles (738 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 12.91 m², so cutting alone wastes 7.6 %. Enter your own room and tile size in the calculator on this page.

Is the Triangle hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is triangle.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Triangle?

One repeat of the lattice covers 35000 mm² with 2 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 200 × 350 mm at the default sizes.
