Snub square pattern — free hatch (.pat), texture & 3D tiles

Snub square is a ceramic layout built from 6 tiles per repeat (sizes 122.5 × 122.5, 96.6 × 96.6 mm), repeating on the lattice a = (193.2, 0) mm, b = (0, 193.2) mm, a cell of 37321 mm². The seamless texture repeat is 193.2 × 193.2 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

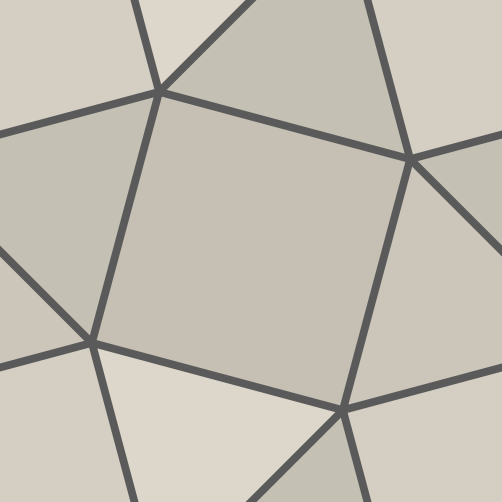

Snub square tile pattern: tiles drawn with their joints

Snub square in numbers

CategoryCeramic, mosaic and geometric tiles
Tiles in one repeat6
Lattice vector a(193.2, 0) mm
Lattice vector b(0, 193.2) mm
Repeat cell area37321 mm²
Tile sizes122.5 × 122.5, 96.6 × 96.6 mm
Seamless texture repeat193.2 × 193.2 mm
Default edge100 (range 10–500)

Free downloads for Snub square

The PAT files are approximate: this pattern has edges that a PAT line family cannot draw exactly, so they are drawn as stepped lines. SVG and DXF are exact.

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Snub square tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
1815
Cut tiles
233
Whole tiles used
2048
Area (net)
12 m²
Tile area bought
12.77 m²
Waste from cuts
6.4 %
Tiles to order
2253
Tiles by size
SizeFull tilesCut tiles
122.5 × 122.5 mm60088
96.6 × 96.6 mm1215145

Open it in the editor or in SketchUp

Open Snub square in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Snub square

How many Snub square tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 1815 full tiles and 233 cut tiles (2048 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 12.77 m², so cutting alone wastes 6.4 %. Enter your own room and tile size in the calculator on this page.

Is the Snub square hatch exact?

Not entirely. A PAT file can only hold straight dashed line families, and Snub square has edges that no such family reproduces exactly. The file draws 16 edges as a staircase of horizontal and vertical steps of 9.7 mm, within a fraction of a step of the true edge. The SVG and DXF downloads are exact.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Snub square?

One repeat of the lattice covers 37321 mm² with 6 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 193.2 × 193.2 mm at the default sizes.
