Hexagram and snub triangles pattern — free hatch (.pat), texture & 3D tiles

Hexagram and snub triangles is a ceramic layout built from 9 tiles per repeat (sizes 200 × 173.2, 100 × 86.6, 115.5 × 100 mm), repeating on the lattice a = (250, 86.6) mm, b = (50, 259.8) mm, a cell of 60622 mm². The seamless texture repeat is 700 × 1212.4 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

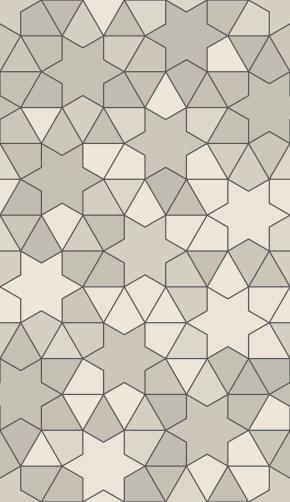

Hexagram and snub triangles tile pattern: tiles drawn with their joints

Hexagram and snub triangles in numbers

CategoryCeramic, mosaic and geometric tiles
Tiles in one repeat9
Lattice vector a(250, 86.6) mm
Lattice vector b(50, 259.8) mm
Repeat cell area60622 mm²
Tile sizes200 × 173.2, 100 × 86.6, 115.5 × 100 mm
Seamless texture repeat700 × 1212.4 mm
Default edge100 (range 10–500)
Default star depth (valley / apothem)0.666667 (range 0.2–0.95)

Free downloads for Hexagram and snub triangles

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Hexagram and snub triangles tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
1711
Cut tiles
127
Whole tiles used
1838
Area (net)
12 m²
Tile area bought
12.5 m²
Waste from cuts
4.2 %
Tiles to order
2022
Tiles by size
SizeFull tilesCut tiles
200 × 173.2 mm18133
100 × 86.6 mm115261
115.5 × 100 mm37833

Open it in the editor or in SketchUp

Open Hexagram and snub triangles in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Hexagram and snub triangles

How many Hexagram and snub triangles tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 1711 full tiles and 127 cut tiles (1838 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 12.5 m², so cutting alone wastes 4.2 %. Enter your own room and tile size in the calculator on this page.

Is the Hexagram and snub triangles hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is hexagram-snub.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Hexagram and snub triangles?

One repeat of the lattice covers 60622 mm² with 9 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 700 × 1212.4 mm at the default sizes.
