Gable parquet pattern — free hatch (.pat), texture & 3D tiles

Gable parquet is a wood layout built from 12 tiles per repeat (sizes 143.7 × 71.8, 287.4 × 71.8, 431.1 × 71.8 mm), repeating on the lattice a = (304.8, 304.8) mm, b = (304.8, -304.8) mm, a cell of 185806 mm². The seamless texture repeat is 609.6 × 609.6 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

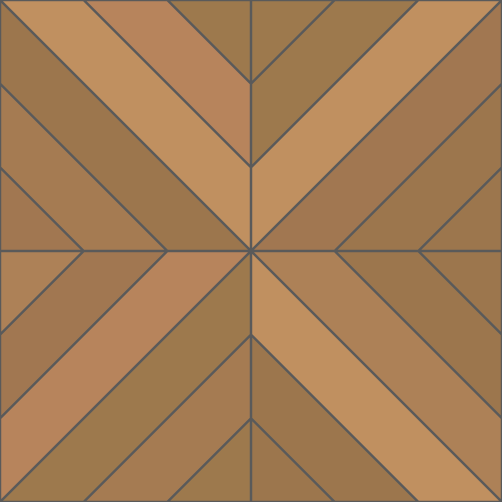

Gable parquet tile pattern: tiles drawn with their joints

Gable parquet in numbers

CategoryWood floors and parquetry
Tiles in one repeat12
Lattice vector a(304.8, 304.8) mm
Lattice vector b(304.8, -304.8) mm
Repeat cell area185806 mm²
Tile sizes143.7 × 71.8, 287.4 × 71.8, 431.1 × 71.8 mm
Seamless texture repeat609.6 × 609.6 mm
Default square module side304.8 (range 50–2000)

Free downloads for Gable parquet

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Gable parquet tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
728
Cut tiles
92
Whole tiles used
820
Area (net)
12 m²
Tile area bought
12.8 m²
Waste from cuts
6.7 %
Tiles to order
903
Tiles by size
SizeFull tilesCut tiles
143.7 × 71.8 mm24723
287.4 × 71.8 mm24723
431.1 × 71.8 mm23446

Open it in the editor or in SketchUp

Open Gable parquet in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Gable parquet

How many Gable parquet tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 728 full tiles and 92 cut tiles (820 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 12.8 m², so cutting alone wastes 6.7 %. Enter your own room and tile size in the calculator on this page.

Is the Gable parquet hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is gable-parquet.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Gable parquet?

One repeat of the lattice covers 185806 mm² with 12 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 609.6 × 609.6 mm at the default sizes.
