Floret pentagonal pattern — free hatch (.pat), texture & 3D tiles

Floret pentagonal is a ceramic layout built from 6 tiles per repeat (sizes 150 × 115.5, 144.3 × 100 mm), repeating on the lattice a = (250, 86.6) mm, b = (50, 259.8) mm, a cell of 60622 mm². The seamless texture repeat is 700 × 1212.4 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

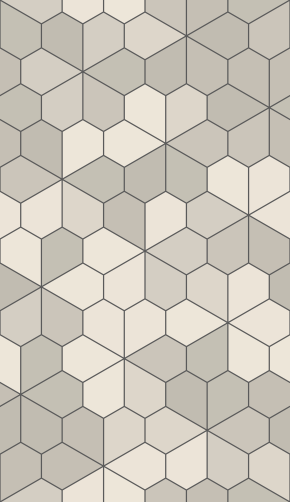

Floret pentagonal tile pattern: tiles drawn with their joints

Floret pentagonal in numbers

CategoryCeramic, mosaic and geometric tiles
Tiles in one repeat6
Lattice vector a(250, 86.6) mm
Lattice vector b(50, 259.8) mm
Repeat cell area60622 mm²
Tile sizes150 × 115.5, 144.3 × 100 mm
Seamless texture repeat700 × 1212.4 mm
Default source edge100 (range 10–500)

Free downloads for Floret pentagonal

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Floret pentagonal tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
1113
Cut tiles
141
Whole tiles used
1254
Area (net)
12 m²
Tile area bought
12.67 m²
Waste from cuts
5.6 %
Tiles to order
1380
Tiles by size
SizeFull tilesCut tiles
150 × 115.5 mm36853
144.3 × 100 mm74588

Open it in the editor or in SketchUp

Open Floret pentagonal in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Floret pentagonal

How many Floret pentagonal tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 1113 full tiles and 141 cut tiles (1254 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 12.67 m², so cutting alone wastes 5.6 %. Enter your own room and tile size in the calculator on this page.

Is the Floret pentagonal hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is floret-pentagonal.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Floret pentagonal?

One repeat of the lattice covers 60622 mm² with 6 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 700 × 1212.4 mm at the default sizes.
