Arrow block pattern — free hatch (.pat), texture & 3D tiles

Arrow block is a ceramic layout built from 1 tile per repeat (sizes 250 × 100 mm), repeating on the lattice a = (100, 0) mm, b = (0, 200) mm, a cell of 20000 mm². The seamless texture repeat is 100 × 200 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

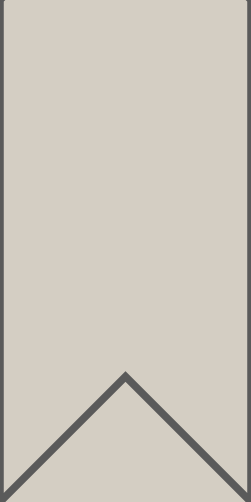

Arrow block tile pattern: tiles drawn with their joints

Arrow block in numbers

CategoryCeramic, mosaic and geometric tiles
Tiles in one repeat1
Lattice vector a(100, 0) mm
Lattice vector b(0, 200) mm
Repeat cell area20000 mm²
Tile sizes250 × 100 mm
Seamless texture repeat100 × 200 mm
Default width100 (range 30–300)
Default length200 (range 50–600)
Default point height / width0.5 (range 0.1–1)

Free downloads for Arrow block

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Arrow block tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
560
Cut tiles
80
Whole tiles used
640
Area (net)
12 m²
Tile area bought
12.8 m²
Waste from cuts
6.7 %
Tiles to order
704
Tiles by size
SizeFull tilesCut tiles
250 × 100 mm56080

Open it in the editor or in SketchUp

Open Arrow block in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Arrow block

How many Arrow block tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 560 full tiles and 80 cut tiles (640 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 12.8 m², so cutting alone wastes 6.7 %. Enter your own room and tile size in the calculator on this page.

Is the Arrow block hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is arrow-block.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Arrow block?

One repeat of the lattice covers 20000 mm² with 1 tile. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 100 × 200 mm at the default sizes.
