Dearne's bond pattern — free hatch (.pat), texture & 3D tiles

Dearne's bond is a brick layout built from 3 tiles per repeat (sizes 225 × 112.5, 112.5 × 75 mm), repeating on the lattice a = (225, 0) mm, b = (0, 187.5) mm, a cell of 42188 mm². The seamless texture repeat is 225 × 187.5 mm. Download it as a CAD hatch, a seamless texture or SVG and DXF lines, count the tiles for your room, or build it as real 3D tiles in SketchUp. All free.

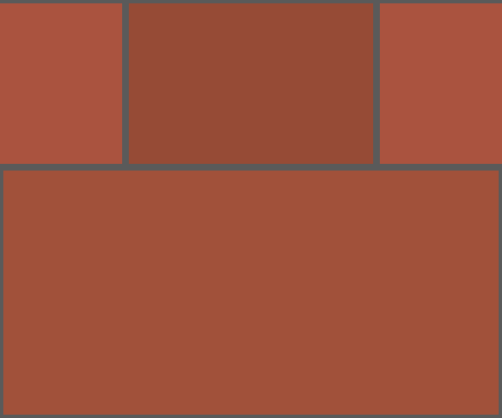

Dearne's bond tile pattern: tiles drawn with their joints

Dearne's bond in numbers

CategoryBrick bonds
Tiles in one repeat3
Lattice vector a(225, 0) mm
Lattice vector b(0, 187.5) mm
Repeat cell area42188 mm²
Tile sizes225 × 112.5, 112.5 × 75 mm
Seamless texture repeat225 × 187.5 mm
Default shiner length (with joint)225 (range 100–600)
Default header course height (with joint)75 (range 30–200)

Free downloads for Dearne's bond

Hatch units are millimetres at the default tile size. For other sizes use the hatch page or the editor, which exports every format at the size you set.

Dearne's bond tile calculator

Enter the room, grout and tile size. The count comes from the same engine that lays the 3D tiles, so the cut tiles are real cuts against your room edges (a 4 × 3 m room is shown first). More patterns: tile calculator.

Full tiles
832
Cut tiles
48
Whole tiles used
880
Area (net)
12 m²
Tile area bought
12.29 m²
Waste from cuts
2.4 %
Tiles to order
969
Tiles by size
SizeFull tilesCut tiles
225 × 112.5 mm27216
112.5 × 75 mm56032

Open it in the editor or in SketchUp

Open Dearne's bond in the editor

Use it in SketchUp (10 free uses a day) motif.rbz

Questions about Dearne's bond

How many Dearne's bond tiles do I need for a 4 × 3 m room?

With the default tile size and a 3 mm joint, a 4 × 3 m floor needs 832 full tiles and 48 cut tiles (880 whole tiles counting each cut tile as one). The net area is 12 m² and the tiles bought cover 12.29 m², so cutting alone wastes 2.4 %. Enter your own room and tile size in the calculator on this page.

Is the Dearne's bond hatch exact?

Yes. The .pat file draws the tile edges exactly: every edge direction of this pattern is parallel to a lattice vector, so a PAT line family reproduces it without approximation. Units are millimetres and the pattern name inside the file is dearnes-bond.

How do I use the .pat file in AutoCAD?

Copy the .pat file into a folder that is in AutoCAD's Support File Search Path (Options > Files), keep the file name (the pattern name inside the file matches it), then pick the pattern in the HATCH command. If Windows blocks the download, right-click the file, open Properties and tick Unblock.

How do I use the .pat file in Revit?

In Revit open Manage > Additional Settings > Fill Patterns, click New, choose Custom and browse to the .pat file. Use the model variant when the pattern must keep its real size on the building.

What is the repeat size of Dearne's bond?

One repeat of the lattice covers 42188 mm² with 3 tiles. The smallest rectangle that repeats seamlessly in both directions, which is what a texture image needs, is 225 × 187.5 mm at the default sizes.
